Mancraft CNC Gearbox V2.5 (V2 Long) – 8mm QSC

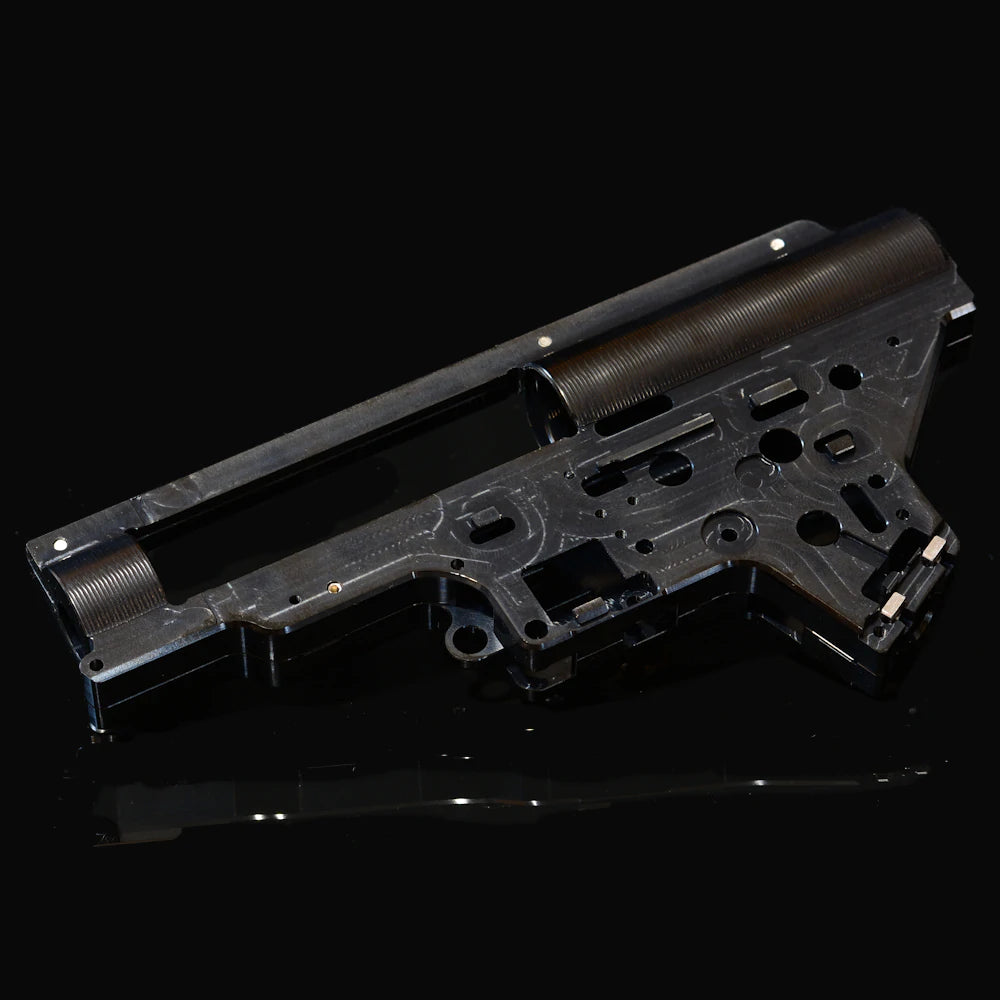

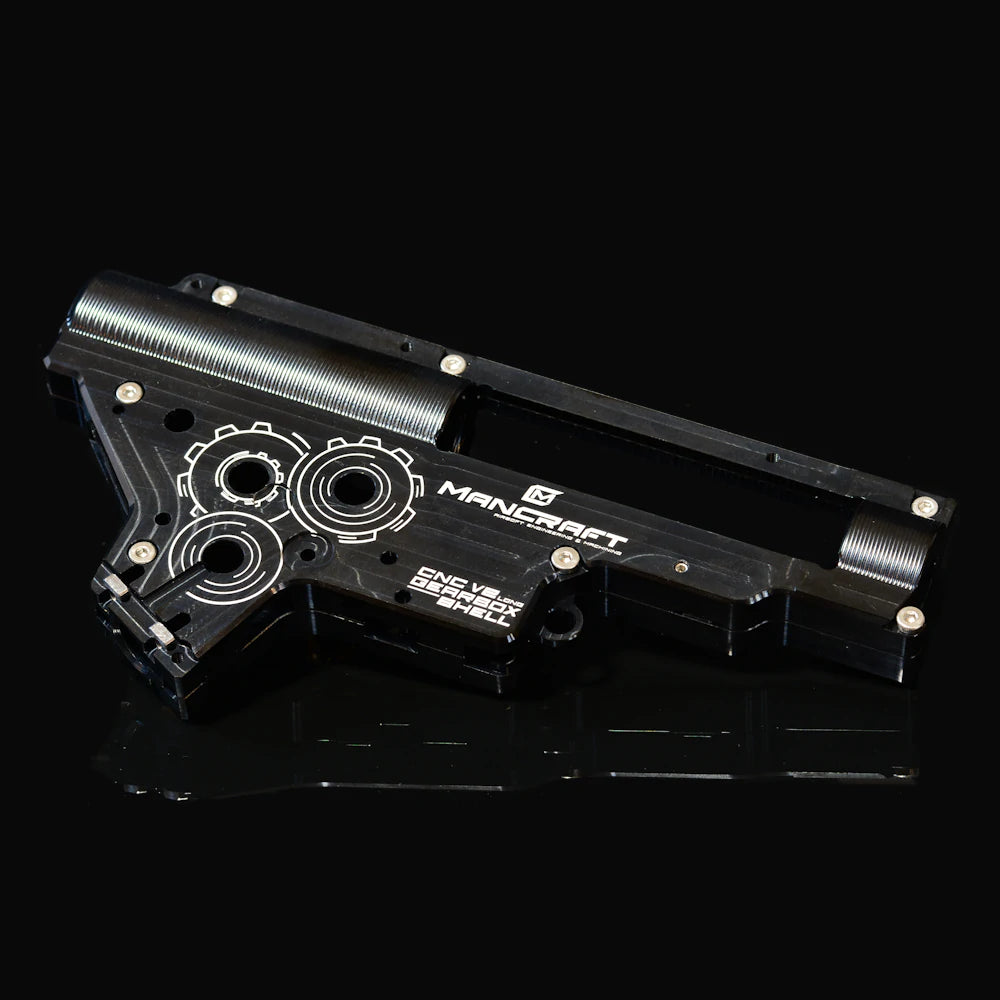

Build a DMR that can handle the strongest springs, high rate of fire and long bursts without breaking a sweat. The Mancraft CNC Gearbox V2.5 (V2 Long) – 8mm QSC is a reinforced shell for SR25 replicas and other V2 Long platforms, made entirely from 7075 T6 aluminium on CNC machines. The quick spring change system, 8 mm bearing seats and reinforced front make it an ideal base for demanding AEG and HPA configurations.
Key features
- Aircraft-grade 7075 T6 aluminium, CNC machined – shell made from a solid block of high-strength material, designed for strong springs typically used in SR25/DMR replicas.
- QSC (Quick Spring Change) system – QD-type spring guide with quick access, allowing you to change the spring without fully disassembling the replica.
- Seats for 8 mm bearings / bushings – stable gear operation in powerful, long-barrel DMR setups with reduced wear and risk of overheating.
- Reinforced front of the shell – extra material at the front of the gearbox reduces the risk of cracking in the most stressed area.
- Service and inspection ports – make assembly, servicing and checking gear operation and anti-reversal latch engagement easier after the gearbox is closed.
- Receiver alignment screws – the sides of the shell feature adjustment screws that let you precisely align the gearbox in the body and eliminate side-to-side play.
- Steel threads for pistol grip mounting – instead of threads cut directly in aluminium, steel inserts are used, much more resistant to wear and stripping during frequent servicing.
- Cut-out for AoE correction – an additional cut-out near the sector gear area makes it easier to work on a proper Angle of Engagement.
- Ready for SR25 / V2 Long replicas – compatible with most AEG replicas equipped with a V2 Long gearbox (SR25 and similar DMR platforms).
- Colour: black – tactical, universal finish that suits most receivers and custom DMR builds.
- Manufactured 100% in Poland / EU, based on our own in-house design.
- Covered by the Mancraft Lifetime Warranty programme.
Box contents
- 1× Mancraft CNC Gearbox V2.5 (V2 Long) – 8mm QSC shell in black

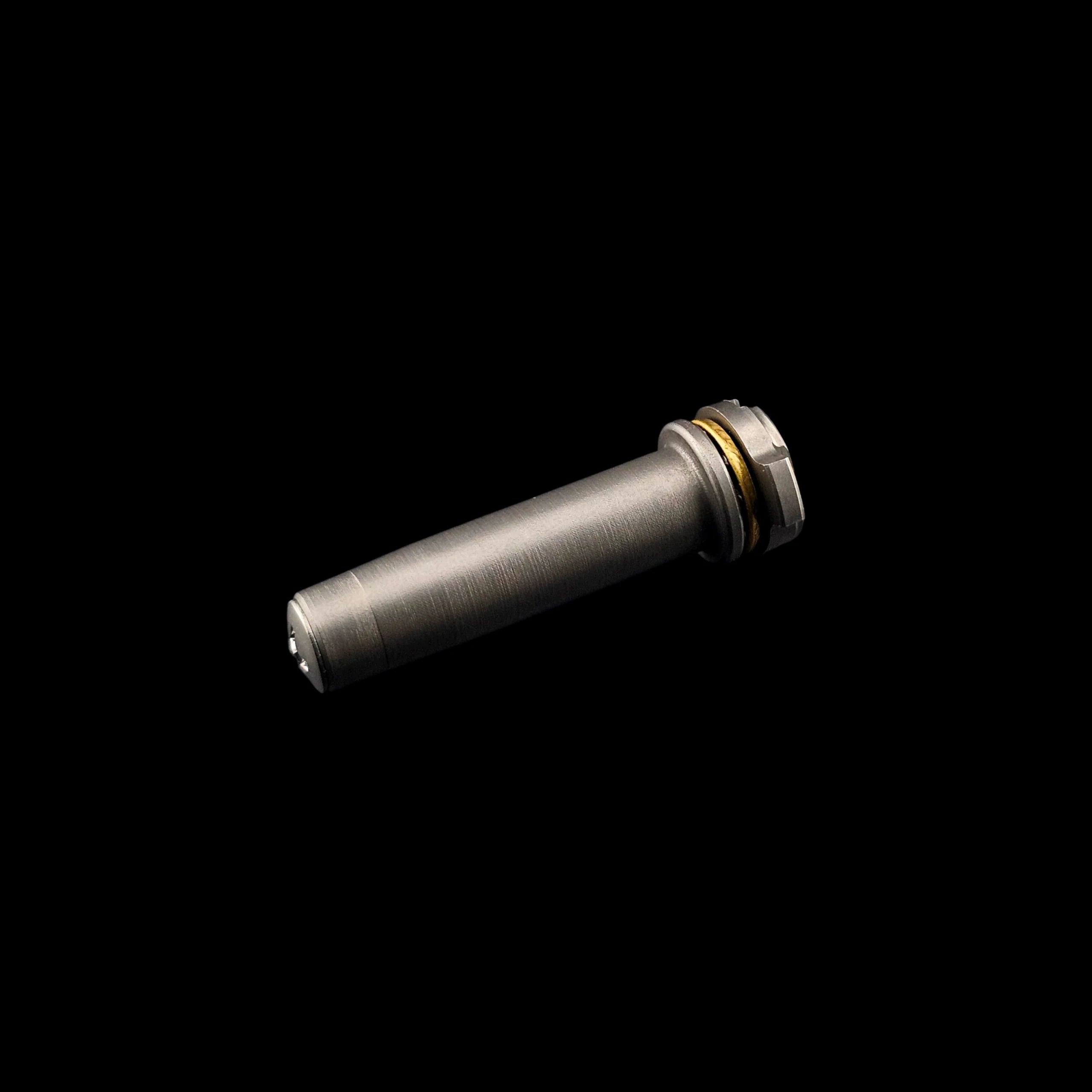

- 1× QD / QSC spring guide
- 1× set of alignment screws
Compatibility and notes
- Platform: most AEG replicas equipped with a V2 Long / V2.5 gearbox, in particular SR25 and related DMR platforms.
- Use: heavily tuned AEG replicas and HPA conversions using a V2 Long shell as a base (compatibility of motor, HPA engine and electronics should be verified individually).
- Not intended for: standard V2 gearboxes (classic-length M4/M16), nor for GBBR platforms.
- Requires advanced installation: recommended assembly by an experienced AEG/HPA technician, especially with non-standard receivers and extreme tuning.
- Important Note - This product is NOT compatible with CM 098 and other SR25 from CYMA
Specifications
- Type: Mancraft CNC gearbox shell V2.5 (V2 Long) – 8mm QSC
- Standard: V2 Long / V2.5 (SR25 and similar)
- System: QSC / QD – Quick Spring Change
- Material: 7075 T6 aluminium, CNC machined, anodised finish
- Bearing size: 8 mm
- Weight: approx. 180 g
- Colour: Black anodized
- Intended use: Airsoft only (AEG/HPA replica part, not a firearm component)
Installation (general / simplified instructions – professional service recommended)
- Make sure the replica is unloaded and disconnected from any power source (battery / HPA air supply).
- Disassemble the replica, remove the complete old V2 Long gearbox from the receiver and take out all internal components (gears, cylinder, piston, trigger, wiring / controller).
- Transfer all internal parts into the Mancraft CNC V2.5 (V2 Long) shell, choosing appropriate 8 mm bearings/bushings and correctly shimming the gears.
- Install the QSC spring guide and the remaining components, then check the mechanism “dry” (without the main spring), using the inspection ports and the AoE correction cut-out.
- Fit the gearbox into the receiver and adjust its position with the front alignment screws and grip shims so that the motor runs quietly, without excessive resistance or rubbing against the body.
- After fully reassembling the replica, perform a series of tests in a safe area, checking sound, BB feeding and FPS stability – this is especially important in long-barrel SR25/DMR builds.
- Tip: if the sound is unnaturally sharp or “rough”, go back to gear shimming and motor height – the precise, perfectly straight CNC shell clearly “shows” any assembly errors and imperfections in cheaper Zn/Al cast receivers.
Why choose the Mancraft CNC Gearbox V2.5?
- Resistance to strong springs – 7075 T6 alloy and the reinforced front section of the shell are optimised for heavily loaded SR25 / DMR setups.
- Tuner-friendly servicing – inspection ports, the QSC system, alignment screws and grip shims significantly simplify assembly, AoE tuning and later servicing.
- CNC precision – consistent dimensions, better fit with the receiver and reduced risk of stress and cracking typical of stock V2 Long shells.
- Looks and versatility – the black anodised finish looks great in tactical DMR builds as well as more “showcase” projects.
- Polish engineering – a product developed by a company specialised in AEG/HPA systems, with extensive experience in replica tuning, backed by full manufacturer support.
FAQ
Will this gearbox fit my SR25 replica?
The shell is designed for AEG replicas with a V2 Long / V2.5 gearbox, including most SR25 and related models. Due to differences between manufacturers (non-standard receivers, different pin sizes), it’s always worth checking your replica’s specifications or consulting installation with a service tech.
Can I use 8 mm bearings and bushings from any brand?
Yes, the shell has 8 mm seats – you can use both bearings and bushings from reputable brands, provided they are installed correctly and the gears are properly shimmed.
How strong a spring can I use?
The 7075 T6 aluminium shell is designed for very powerful DMR configurations. The real limit, however, depends on build quality, parts selection and correct AoE setup – for extreme tuning we recommend consulting an experienced technician.
Is this gearbox suitable for HPA?
Yes, it is an excellent base for HPA conversions, as long as the chosen HPA engine is compatible with a V2 Long / V2.5 gearbox. Installation requires experience and often some minor fitting – especially in non-standard replicas.
Is this a firearm part?
No. This is a component intended exclusively for Airsoft AEG/HPA replicas – it is not compatible with any real firearm or GBBR system.
