A reliable and cost-effective piston.
Wire-cut DC53 Steel Teeth - Engineered for high strength (HRC 60-63) and extended service life under heavy loads
13.5-tooth design handles 35+ RPS builds without stripping - Half-tooth for smoother engagement
PA66-33G(Glass fiber reinforced nylon) body - Weighs only 17.8g for faster cycling
Standard Length Piston Body(66.4mm) Design - Accommodates thicker piston heads (thinner heads require a spacer for Angle of Engagement calibration)

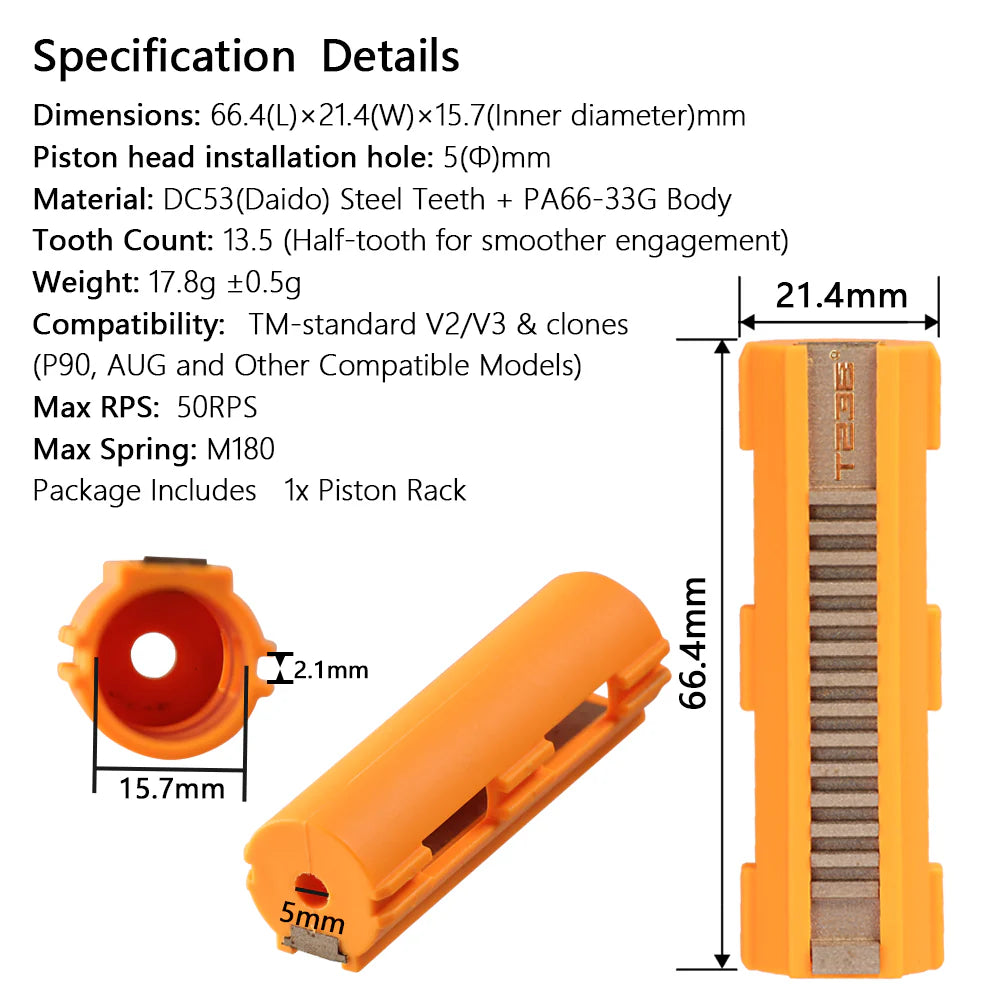

Specifications
Dimensions: 66.4(L)×21.4(W) x15.7(Inner diameter)mm
Piston head installation hole: 5(Ф)mm
Material: DC53(Daido) Steel Teeth + PA66-33G Body
Tooth Count: 13.5 (Half-tooth for smoother engagement)
Weight: 17.8g ±0.5g
Compatibility: TM-standard V2/V3 & clones
(P90, AUG, VECTOR and Other Compatible Models)
Max RPS: 50RPS
Max Spring: M180
